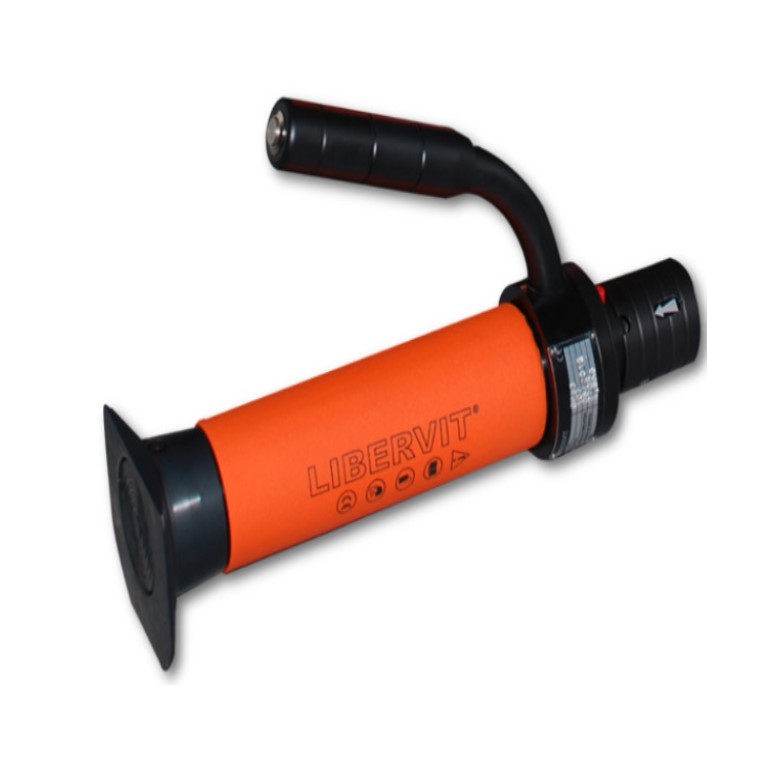

The OP53 door opener provides a fast and silent opening of unshielded doors opening inwards.
For operation, either one of the LIBERVIT: GHP or POWERCASE hydraulic power units, or a LIBERVIT PMP55, PMP64, or PMP75 hand pump and a LFM3 hydraulic hose.

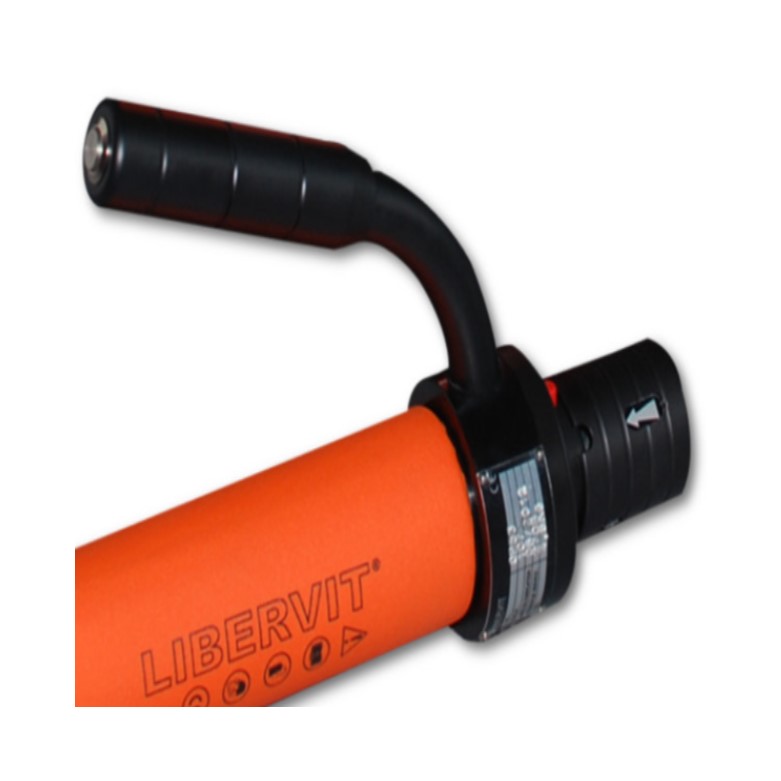

It is equipped with an electric operating switch integrated into the carrying handle. If you have a hydraulic unit LIBERVIT GHP, it can be used while maintaining the hydraulic unit on the back or Power station in the case of the POWERCASE hydroelectric plant.
The opening of the single closing doors is achieved in a single operation, the opening of the multipoint doors will be done point by point. It is the only tool equipped with a head "three points of contact" allowing in some cases the opening of unfavorable doors.
To get the tool started up, simply press the contactor located on the handle of the OP53 after connecting it to one of the hydraulic power units or hand pumps LIBERVIT, Opening of the door. The return to the closed position is done automatically as soon as the contactor is no longer held down.

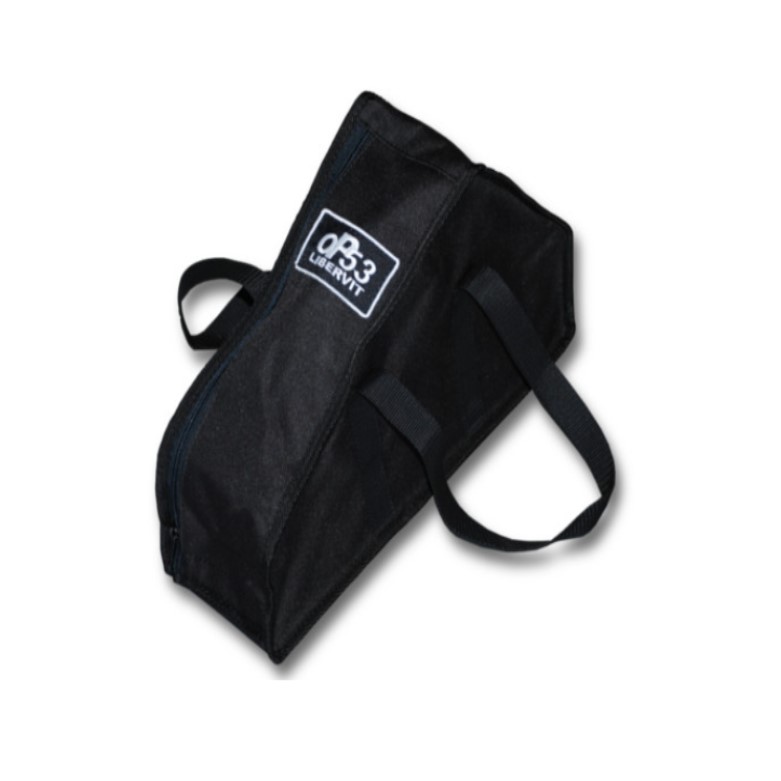

The OP53 door opener comes with a carrying bag. Optional OP53 door opener can be supplied in a transport case, VDT / OP53.
All our tools are equipped with anti-pollution couplings.
Technical Details
Reference: OP53
Thrust force: 59 kN
Cylinder stroke: 140 mm
Dimensions: 330 x 100 x 180 mm
Weight: 5.5 kg
Carry bag for OP53: optional, ref. STOP5
PELICASE carry case: optional, ref. VDTOP5
Protective Cap: optional, ref. BF
